Introducing EVIS EXERA III

Olympus is proud to introduce our latest generation video endoscopy system, EVIS EXERA III. A result of our commitment to research and development and our collaborative efforts with the medical community, EVIS EXERA III sets new standards for endoscopy by focusing upon:

- Advancing Visualisation
- Advancing Control

Innovative technologies in these focus areas help facilitate more accurate diagnosis and treatment, simplify setup and reprocessing, improve workflow, and link patient and department information to the hospital information system through smart integrative technologies.

EVIS EXERA III is Advancing the Art of Endoscopy with an array of opto-digital innovations.

  • Add to Watch List
  • Brochure

Enhanced Image Quality

HQ scopes employ advanced OLYMPUS optics, improved image sensors and the new CV-190 video processor to deliver exceptionally clear, high-resolution images. The result is superior imaging with reduced halation and image noise and increased contrast and brightness. In the EVIS EXERA III generation, high-definition imaging will become standard on the core range of endoscopes.

EVIS EXERA III

Dual Focus

Dual focus two-stage optical lens technology from OLYMPUS allows physicians to switch from normal focus mode to near focus mode with a single button, so they can conduct close examination of mucosal tissue and capillary networks. The new technology lets physicians select the desired depth of field and obtain high-quality images at the same time, bringing a new level of visualization to routine examinations.

EVIS EXERA III
EVIS EXERA III

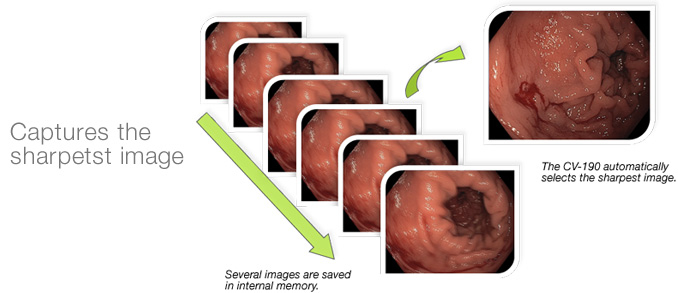

PRE-FREEZE

Capture a crisp, clear image the first time. EVIS EXERA III dramatically increases the sharpness and clarity of still-image captures, due to a new still-image capture algorithm.

EVIS EXERA III

Wider Angle

The 170° wide-angle field of view, which has been standard on adult OLYMPUS colonoscopes, is now available on regular EVIS EXERA III 190 Series pediatric scopes (PCF-H190L/I). The benefits of wide-angle endoscopy include brighter imaging on the periphery and a 30° wider field of view. This can help physicians to detect mucosal changes more rapidly with less need for angulation.

EVIS EXERA III

Clinical images courtesy of Roy Soetikno, MD/Tonya Kaltenbach, MD

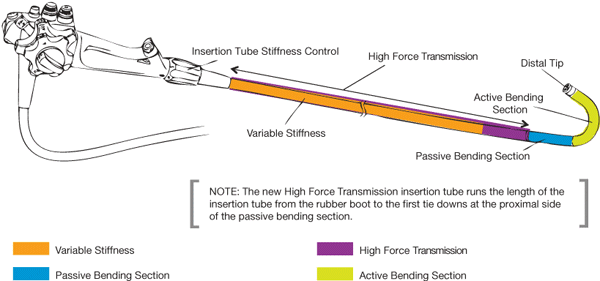

Responsive Insertion Technology

RIT consists of three technologies that work together to improve ease of insertion and operator control, which may help to minimize patient discomfort and enhance procedural efficiency.

Passive Bending

The new insertion section includes a soft passive bending section that better follows the passage through acute turns.

High Force Transmission

High Force Transmission enables a 1:1 transfer of pushing &rotating forces to the distal end of the colonoscope, improving ergonomics and scope responsiveness.

Variable Stiffness

Variable stiffness allows the flexibility a scope to be changed incrementally by manipulating a flexibility adjustment ring.

EVIS EXERA III

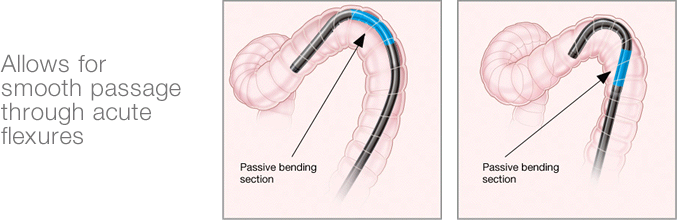

Passive Bending

This technology allows for smooth passage through acute flexures by allowing the distal tip of the scope to “deflect” and conform to the natural anatomy. Conventional scopes create a “candy cane” effect causing distended anatomy, patient discomfort and procedural difficulty.

Allows for smooth passage through acute flexures

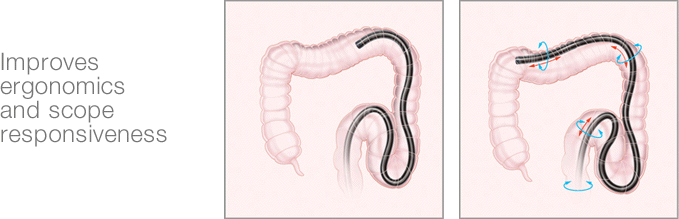

High Force Transmission

High Force Transmission enables a 1:1 transfer of pushing & rotating forces to the distal end of the colonoscope, improving ergonomics and scope responsiveness.

Improves ergonomics and scope responsiveness

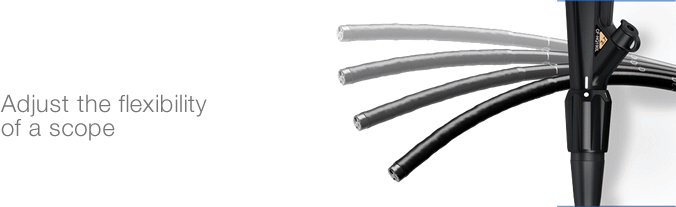

Variable Stiffness

Variable stiffness allows the flexibility of a scope to be changed incrementally by manipulating a flexibility adjustment ring.

Adjust the flexibility of a scope

NBI

Narrow Band Imaging (NBI) is an optical image enhancement technology that enhances the visibility and characterisation of healthy and abnormal tissue and other structures on the mucosal surface. Now with EVIS EXERA III, there is 1.5 times brighter light which gives twice the viewable distance and much greater contrast under NBI, which opens up new clinical applications and reinforces NBI’s acceptance as a standard of care.

NBI
NBI

Clinical images courtesy of Roy Soetikno, MD/Tonya Kaltenbach, MD

ScopeGuide

ScopeGuide is a GPS for the colon designed to improve efficiency and patient comfort, even during difficult procedures. ScopeGuide is integrated into EVIS EXERA III with the CF-HQ190 colonoscope.

scope guide image

Learn More

Imaging Systems

EVIS EXERA III Video Processor CV-190

EVIS EXERA III Video Processor

CV-190

  • HDTV
  • NBI
  • Ground-breaking resolving power for efficient diagnosis
  • Brighter, more powerful Narrow Band Imaging
  • Outstanding, true-to-life image quality
  • Brochure
EVIS EXERA III Xenon Light Source CLV-190

EVIS EXERA III Xenon Light Source

CLV-190

  • NBI
  • One-touch Connector
  • Brighter, more powerful Narrow Band Imaging
  • Improved ergonomics
  • Brochure

Gastroscopes

EVIS EXERA III Video Gastrointestinal Scope GIF-HQ190

EVIS EXERA III Video Gastrointestinal Scope

GIF-HQ190

  • HDTV
  • Dual Focus
  • NBI
  • One-touch Connector
  • Ground-breaking resolving power for efficient diagnosis
  • Brighter, more powerful Narrow Band Imaging
  • Outstanding, true-to-life HD image quality
  • Brochure
EVIS EXERA III Video Gastrointestinal Scope GIF-H190

EVIS EXERA III Video Gastrointestinal Scope

GIF-H190

  • HDTV
  • NBI
  • One-touch Connector
  • Outstanding, true-to-life HD image quality
  • Brighter, more powerful Narrow Band Imaging
  • Water jet for a clearer view
  • Brochure
EVIS EXERA III Video Gastrointestinal Scope GIF-1TH190

EVIS EXERA III Video Gastrointestinal Scope

GIF-1TH190

  • HDTV
  • NBI
  • Outstanding, true-to-life HD image quality
  • Brighter, more powerful Narrow Band Imaging
  • Slim design and theraputic capability
    with 3.7mm instrument channel diameter
  • Brochure
EVIS EXERA III  Video Gastrointestinal Scope GIF-XP190N

EVIS EXERA III Video Gastrointestinal Scope

GIF-XP190N

  • NBI
  • One-touch Connector
  • Superior image quality in a super-slim design
  • Wider possibilities for therapeutic interventions
  • Brighter, more powerful Narrow Band Imaging
  • Brochure

Colonoscopes

EVIS EXERA III Video Colonoscope CF-HQ190

EVIS EXERA III Video Colonoscope

CF-HQ190

  • HDTV
  • Dual Focus
  • NBI
  • 170° Wide-angle
  • Unique Responsive Insertion Technology
  • One-touch Connector
  • Ground-breaking resolving power for efficient diagnosis
  • Brighter, more powerful Narrow Band Imaging
  • Outstanding, true-to-life HD image quality
  • Brochure
EVIS EXERA III Video Colonoscope CF-H190

EVIS EXERA III Video Colonoscope

CF-H190

  • HDTV
  • NBI
  • 170° Wide-angle
  • Unique Responsive Insertion Technology
  • One-touch Connector
  • Outstanding, true-to-life HD image quality
  • Brighter, more powerful Narrow Band Imaging
  • Smoother and more comfortable insertion
  • Brochure
EVIS EXERAIII  Video Colonoscope  PCF-H190D

EVIS EXERAIII Video Colonoscope

PCF-H190D

  • HDTV
  • NBI
  • 170° Wide-angle
  • Unique Responsive Insertion Technology
  • One-touch Connector
  • Slim colonoscope with ScopeGuide function
  • Outstanding, true-to-life HD image quality
  • Smoother and more comfortable insertion
  • Brochure
EVIS EXERA III Video Colonoscope PCF-PH190

EVIS EXERA III Video Colonoscope

PCF-PH190

  • HDTV
  • NBI
  • Unique Responsive Insertion Technology
  • One-touch Connector
  • New ultra-thin design defining a new type of colonoscope
  • Outstanding, true-to-life HD image quality
  • Brighter, more powerful Narrow Band Imaging

Bronchoscopes

EVIS EXERA III Video Bronchoscope BF-H190

EVIS EXERA III Video Bronchoscope

BF-H190

  • HDTV
  • NBI
  • Rotation
  • One-touch Connector
  • Stunning HDTV white light imaging performance and improved NBI
  • Insertion tube rotation function and 210° angulation
  • Fully waterproof endoscope and one-touch connector
  • Brochure
EVIS EXERA III Video Bronchoscope BF-1TH190

EVIS EXERA III Video Bronchoscope

BF-1TH190

  • HDTV
  • NBI
  • Rotation
  • One-touch Connector
  • Advancing visualisation
  • Advancing maneuverability
  • Brochure
EVIS EXERA III Video Bronchoscope BF-Q190

EVIS EXERA III Video Bronchoscope

BF-Q190

  • NBI
  • Rotation
  • One-touch Connector
  • Stunning high resolution imaging in a slim scope
  • Insertion tube rotation function and 210° angulation
  • Fully waterproof endoscope and one-touch connector
  • Brochure
EVIS EXERA III Video Bronchoscope BF-P190

EVIS EXERA III Video Bronchoscope

BF-P190

  • NBI
  • Ultra-slim-design videoscope
  • Insertion tube rotation function
  • Wider angulation range
  • Brochure
EVIS EXERA III Video Bronchoscope BF-XP190

EVIS EXERA III Video Bronchoscope

BF-XP190

  • NBI
  • Extremely-slim-design videoscope
  • Insertion tube rotation function
  • Wider angulation range
  • Brochure
