Multidebrider

DIEGO ELITE

DIEGO ELITE

Contents start

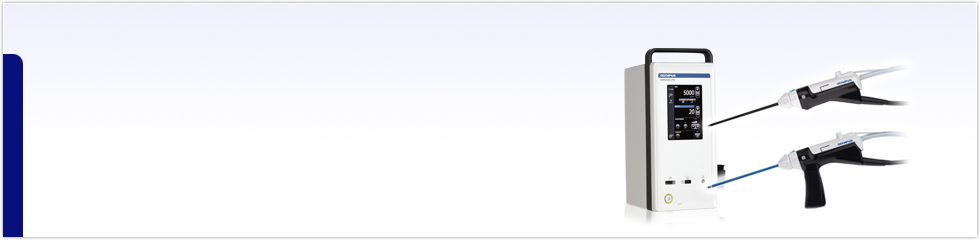

The DIEGO ELITE Multidebrider -offers you Multiple way to do surgery

The DIEGO ELITE Multidebrider is a first in class, unique system with a range of efficiency optimizing features. It is the world's only ENT system to offer both monopolar and bipolar energy blades for hemostasis, as well as traditional standard shaver blades -providing specialists a full array of surgery options using just one device.

In addition, procedural efficiency is optimized with features such as toggle stop to open or close the blade window quickly, dedicated suction and convenient bulb for easy de-clogging, choice of ergonomic hand pieces suited to physician preference, and a blade ID feature that defaults to recommended settings for each attached blade.

*Olympus FESS Solution
Functional endoscopic sinus surgery (FESS) is one of the primary surgical treatments to correct sinusitis and nasal polyps. Olympus offers leading visualization technology as well as minimally invasive powered and manual surgical instrumentation that help improve FESS efficiency and patient outcomes.

  • Add to Watch List
  • Brochure

Choice

Integrated monopolar and bipolar features

Monopolar or Bipolar coagulation at your fingertips is one option to control bleeding - the unique features DIEGO ELITE can provide.

Procedure efficient blade features

ENT surgeries often require a wide variety of cutting blades and tools.
DIEGO ELITE provide wide varieties of blades/burrs for various clinical applications / surgeons' preferences.

Rotatable blades for frontal and maxillary sinus
360° rotation of the cutting window at the distal tip of the blade allows for more efficient tissue dissection for frontal and maxillary cases.

Bendable blade with radiofrequency (RF) option for T&A
Special bendable blades enable unprecedentedly reach more anatomical area with one blade and versatility across a full range of ENT surgeries from tonsillectomy to adenoidectomy.

Greater Efficiency

Declog system

The newly designed declog bulb attaches to the suction and irrigation tubing.
During a procedure, if a clog is encountered, the clog can simply be removed by squeezing the bulb without any extra action on the blades.

Automatic toggle stop function for blade window control

A single tap of a foot pedal allows for the shaver blade window to be completely closed and/or fully opened; which is ideal for starting a procedure or for providing suction during a case without losing position.

Dedicated Suction

Inferior wall suction can be a major cause of poor tissue removal.
DIEGO ELITE now offers the option of a dedicated suction module to allow for constant suction to aid with faster tissue removal.

MULTIDEBRIDER

  • Two surgeon-inspired handpieces
  • Accommodates individual surgeon preference

Disposable Suction Pathway

  • Biomaterial passes directly from blade to disposable tube set
  • Straight through suction optimizes tissue dissection

Declog

  • Single action to remove a clog
  • Faster clog removal
  • Saves time and effort
  • Faster procedure

Dedicated Suction

  • High powered dedicated suction
  • Improved suction results in better performance
  • Advanced suction minimizes clogs

Blade ID

  • Auto-recognition of blade
  • Defaults to recommended settings
  • Easy and intuitive set up

Toggle Stop

  • Single action to fully open or close blade window
  • Improved efficiency

Types of BLADES

Standard Blades

  • Type A blades provide optimized tissue dissection.
  • Rotatable blades now available for frontal and maxillary cases.
  • Distal Suction increases visualization with fewer clogs and instrument exchanges.

Bipolar Blades

  • Improved coagulation performance versus PK diego.
  • Significantly shorter OR time versus standard blades.
  • Available for sinus, turbinate and tonsil & adenoid blades.

Monopolar Blades

  • Monopolar coagulation at your fingertips is one option to control bleeding.
  • Equivalent monopolar performance to standard OR generators.
  • Available for both sinus and tonsil & adenoid blades.

Skull Based Burrs

  • Highly durable line of dedicated skull base burrs.

The procedural optimized features

Rotatable blades for frontal and maxillary sinus

360 rotation of the cutting window at the distal tip of the blade allows for more efficient tissue dissection for frontal and maxillary cases.

Distal Suction Blade for bleeding control

Distal suction hole on the blades enables their use as a suction tube for even more efficiency during procedures.

Bendable blades with radiofrequency (RF) option for T&A

Bendable blades enable such a wide reach across the surgical area and the versatility for a range of surgeries from tonsillectomy to adenoidectomy. The blades are available with RF.

BLADES and BURRS Line up by Clinical Application

SINUS APPLICATION BLADES, STRAIGHT

STANDARD

TYPE A

SB4000SA - Shaver Blade, 4 mm, Straight, Standard, Type A, 5/Pkg
SB4800SA - Shaver Blade, 4.8 mm, Straight, Type A, 5/Pkg

SERRATED

SB2900SS - Shaver Blade, 2.9 mm, Straight, Serrated, Distal Suction, 5/Pkg
SB4000SC - Shaver Blade, 4 mm, Straight, Serrated, Closed, 5/Pkg
SB4000SS - Shaver Blade, 4 mm, Straight, Standard, Serrated, Distal Suction, 5/Pkg

BIPOLAR

SERRATED

BB4000SS - Bipolar Blade, 4 mm, Straight, Standard, Serrated, Distal Suction, 5/Pkg

MONOPOLAR

SERRATED

MB4000SS - Monopolar Blade, 4 mm, Straight, Standard, Serrated, Distal Suction, 5/Pkg

SINUS APPLICATION BLADES, CURVED

STANDARD

15°

SB4015SC - Shaver Blade, 4 mm,15,° Serrated, Closed, 5/Pkg
SB4015SS - Shaver Blade, 4 mm, 15,° Standard, Serrated, Distal Suction, 5/Pkg

40°

SB2940SC - Shaver Blade, 2.9 mm, 40,° Serrated, Closed, 5/Pkg
SB2940SS - Shaver Blade, 2.9 mm, 40,° Standard, Serrated, Distal Suction, 5/Pkg
SB4040SC - Shaver Blade, 4 mm, 40,° Serrated, Closed, 5/Pkg
SB4040SS - Shaver Blade, 4 mm, 40,° Standard, Serrated, Distal Suction, 5/Pkg
SB4040RC - Shaver Blade, 4 mm, 40,° Rotatable Window, Closed, 5/Pkg
SB4040RS - Shaver Blade, 4 mm, 40,° Rotatable Window, Serrated, Distal Suction, 5/Pkg

60°

SB4060SC - Shaver Blade, 4 mm, 60,° Serrated, Closed, 5/Pkg
SB4060SS - Shaver Blade, 4 mm, 60,° Standard, Serrated, Distal Suction, 5/Pkg
SB4060RC - Shaver Blade, 4 mm, 60,° Rotatable Window, Closed, 5/Pkg
SB4060RS - Shaver Blade, 4 mm, 60,° Rotatable Window, Serrated, Distal Suction, 5/Pkg

75°

SB2975SC - Shaver Blade 2.9 mm, 75,° Serrated, Closed, 5/Pkg
SB2975SS - Shaver Blade, 2.9 mm, 75,° Standard, Serrated, Distal Suction, 5/Pkg

90°

SB4090RC - Shaver Blade, 4 mm, 90,° Rotatable Window, Closed, 5/Pkg
SB4090RS - Shaver Blade, 4 mm, 90,° Rotatable Window, Serrated, Distal Suction, 5/Pkg

BIPOLAR

40°

BB4040SS - Bipolar Blade, 4 mm, 40,° Standard, Serrated, Distal Suction, 5/Pkg

AVAILABLE WITH ROTATABLE WINDOW

TURBINATE APPLICATION BLADES, STRAIGHT

STANDARD

TURBINATE

SB2000SA - Shaver Blade, 2 mm, Straight, Standard, Type A, 5/Pkg

BIPOLAR, STRAIGHT

TURBINATE

BB2000SA - Bipolar Blade, 2 mm, Straight, Standard, Type A, SMR, 5/Pkg

BURRS

DIAMOND BULLET BURR

BUR3015DB - Burr, 3 mm, 15 cm, 15,° Diamond Bullet, 5/Pkg
BUR3070DB - Burr, 3 mm, 13.5 cm, 70,° Diamond Bullet, 5/Pkg

DIAMOND TAPER BURR

BUR4015DT - Burr, 4 mm, 15 cm, 15,° Diamond Taper, 5/Pkg
BUR4070DT - Burr, 4 mm, 13.5 cm, 70,° Diamond Taper, 5/Pkg

DIAMOND BALL BURR

BUR4515BB - Burr, 4.5 mm, 13.5 cm, 15,° Ball Burr, 5/Pkg

FLUTED BARREL BURR

BUR4215FB - Burr, 4.2 mm, 13.5 cm, 15,° Fluted Barrel, 5/Pkg
BUR4260FB - Burr, 4.2 mm, 13.5 cm, 60,° Fluted Barrel, 5/Pkg

TONSIL & ADENOID APPLICATION BLADES

STANDARD, MALLEABLE

TONSIL & ADENOID

MS4000SS - Malleable Blade, 4 mm, 0° - 40,° Serrated, T/A, Distal Suction, 5/Pkg

BIPOLAR, CURVED

TONSIL & ADENOID

BB4040XS - Bipolar Blade, 4 mm, 40,° Convex, Serrated, Distal Suction, 5/Pkg

MONOPOLAR, MALLEABLE

TONSIL & ADENOID

MM4000SS - Malleable Monopolar Blade, 4 mm, 0° - 40,° Serrated, T/A, Distal Suction, 5/Pkg

LARYNGEAL APPLICATION BLADES

SUPERFICIAL

LB2922SS - Laryngeal Blade, 2.9 mm, 22 cm, Standard, Superficial, 5/Pkg
LB2927SS - Laryngeal Blade, 2.9 mm, 27 cm, Standard, Superficial, 5/Pkg

DEBULKING

LB4022SD - Laryngeal Blade, 4 mm, 22 cm, Standard, Debulking, 5/Pkg
LB4027SD - Laryngeal Blade, 4 mm, 27 cm, Standard, Debulking, 5/Pkg

ENT Instruments Rhinology Instruments for FESS

ENT Instruments

Rhinology Instruments for FESS

  • Reduced trauma
  • Guaranteed quality
  • Durability
EVIS EXERA III Video Processor CV-190

EVIS EXERA III Video Processor

CV-190

  • HDTV
  • NBI
  • Ground-breaking resolving power for efficient diagnosis
  • Brighter, more powerful Narrow Band Imaging
  • Outstanding, true-to-life image quality
  • Brochure
EVIS EXERA III Xenon Light Source CLV-190

EVIS EXERA III Xenon Light Source

CLV-190

  • NBI
  • One-touch Connector
  • Brighter, more powerful Narrow Band Imaging
  • Improved ergonomics
  • Brochure
VISERA ELITE Video Processor OTV-S190

VISERA ELITE Video Processor

OTV-S190

  • HDTV
  • NBI
  • Ground- breaking resolving power for safe procedure
  • Brighter, more powerful NBI
  • Outstanding, true-to-life image quality
  • Brochure
VISERA ELITE Xenon Light Source CLV-S190

VISERA ELITE Xenon Light Source

CLV-S190

  • NBI
  • Brighter, more powerful Narrow Band Imaging
  • Photo Dynamic Diagnosis
  • Brochure
ENT Scopes 4MM ULTRA sinuscope

ENT Scopes

4MM ULTRA sinuscope

  • ED Glass Lenses – Razor-Sharp Images
  • Eco-Friendly / Fully Autoclavable
  • Brochure
ENT Scopes HD Sinuscopes

ENT Scopes

HD Sinuscopes

  • High resolution and contrast
  • Improved durability
  • Distortion free
  • Brochure

Ordering Information

DIEGO ELITE SYSTEM

Part Number Description
MDCONS100 Console
MDFS100 Footswitch
MDHP100A MULTIDEBRIDER Handpiece, Angled
MDHP100S MULTIDEBRIDER Handpiece, Straight
MDHPTRAY MULTIDEBRIDER Handpiece Tray
MDSM110V Suction Module - 110V
MDSM220V Suction Module - 220V

DIEGO ELITE ACCESSARIES

Part Number Description
TS100S MULTIDEBRIDER Tubeset, Standard, 5/Pkg
TS101DC MULTIDEBRIDER Tubeset, Declog, 5/Pkg
TS102SF Suction Module Tube Set, Suction/Filter, 5/Pkg

DIEGO ELITE COMPATIBLE BLADES

SINUS APPLICATION BLADES, STRAIGHT

Part Number Description
SB4000SA Shaver Blade, 4 mm, Straight, Standard, Type A, 5/Pkg
SB4800SA Shaver Blade, 4.8 mm, Straight, Type A, 5/Pkg
SB2900SS Shaver Blade, 2.9 mm, Straight, Serrated, Distal Suction, 5/Pkg
SB4000SC Shaver Blade, 4 mm, Straight, Serrated, Closed, 5/Pkg
SB4000SS Shaver Blade, 4 mm, Straight, Standard, Serrated, Distal Suction, 5/Pkg
BB4000SS Bipolar Blade, 4 mm, Straight, Standard, Serrated, Distal Suction, 5/Pkg
MB4000SS Monopolar Blade, 4 mm, Straight, Standard, Serrated, Distal Suction, 5/Pkg

SINUS APPLICATION BLADES, CURVED

Part Number Description
SB4015SC Shaver Blade, 4 mm,15,° Serrated, Closed, 5/Pkg
SB4015SS Shaver Blade, 4 mm, 15,° Standard, Serrated, Distal Suction, 5/Pkg
SB2940SC Shaver Blade, 2.9 mm, 40,° Serrated, Closed, 5/Pkg
SB2940SS Shaver Blade, 2.9 mm, 40,° Standard, Serrated, Distal Suction, 5/Pkg
SB4040SC Shaver Blade, 4 mm, 40,° Serrated, Closed, 5/Pkg
SB4040SS Shaver Blade, 4 mm, 40,° Standard, Serrated, Distal Suction, 5/Pkg
SB4040RC Shaver Blade, 4 mm, 40,° Rotatable Window, Closed, 5/Pkg
SB4040RS Shaver Blade, 4 mm, 40,° Rotatable Window, Serrated, Distal Suction, 5/Pkg
SB4060SC Shaver Blade, 4 mm, 60,° Serrated, Closed, 5/Pkg
SB4060SS Shaver Blade, 4 mm, 60,° Standard, Serrated, Distal Suction, 5/Pkg
SB4060RC Shaver Blade, 4 mm, 60,° Rotatable Window, Closed, 5/Pkg
SB4060RS Shaver Blade, 4 mm, 60,° Rotatable Window, Serrated, Distal Suction, 5/Pkg
SB2975SC Shaver Blade 2.9 mm, 75,° Serrated, Closed, 5/Pkg
SB2975SS Shaver Blade, 2.9 mm, 75,° Standard, Serrated, Distal Suction, 5/Pkg
SB4090RC Shaver Blade, 4 mm, 90,° Rotatable Window, Closed, 5/Pkg
SB4090RS Shaver Blade, 4 mm, 90,° Rotatable Window, Serrated, Distal Suction, 5/Pkg
BB4040SS Bipolar Blade, 4 mm, 40,° Standard, Serrated, Distal Suction, 5/Pkg
AVAILABLE WITH ROTATABLE WINDOW

TURBINATE APPLICATION BLADES, STRAIGHT

Part Number Description
SB2000SA Shaver Blade, 2 mm, Straight, Standard, Type A, 5/Pkg
BB2000SA Bipolar Blade, 2 mm, Straight, Standard, Type A, SMR, 5/Pkg

BURRS

Part Number Description
BUR3015DB Burr, 3 mm, 15 cm, 15,° Diamond Bullet, 5/Pkg
BUR3070DB Burr, 3 mm, 13.5 cm, 70,° Diamond Bullet, 5/Pkg
BUR4015DT Burr, 4 mm, 15 cm, 15,° Diamond Taper, 5/Pkg
BUR4070DT Burr, 4 mm, 13.5 cm, 70,° Diamond Taper, 5/Pkg
BUR4515BB Burr, 4.5 mm, 13.5 cm, 15,° Ball Burr, 5/Pkg
BUR4215FB Burr, 4.2 mm, 13.5 cm, 15,° Fluted Barrel, 5/Pkg
BUR4260FB Burr, 4.2 mm, 13.5 cm, 60,° Fluted Barrel, 5/Pkg

TONSIL & ADENOID APPLICATION BLADES

Part Number Description
MS4000SS Malleable Blade, 4 mm, 0° - 40,° Serrated, T/A, Distal Suction, 5/Pkg
BB4040XS Bipolar Blade, 4 mm, 40,° Convex, Serrated, Distal Suction, 5/Pkg
MM4000SS Malleable Monopolar Blade, 4 mm, 0° - 40,° Serrated, T/A, Distal Suction, 5/Pkg

LARYNGEAL APPLICATION BLADES

Part Number Description
LB2922SS Laryngeal Blade, 2.9 mm, 22 cm, Standard, Superficial, 5/Pkg
LB2927SS Laryngeal Blade, 2.9 mm, 27 cm, Standard, Superficial, 5/Pkg
LB4022SD Laryngeal Blade, 4 mm, 22 cm, Standard, Debulking, 5/Pkg
LB4027SD Laryngeal Blade, 4 mm, 27 cm, Standard, Debulking, 5/Pkg

Contents end

Top of this page
Copyright OLYMPUS CORPORATION All Rights Reserved.
