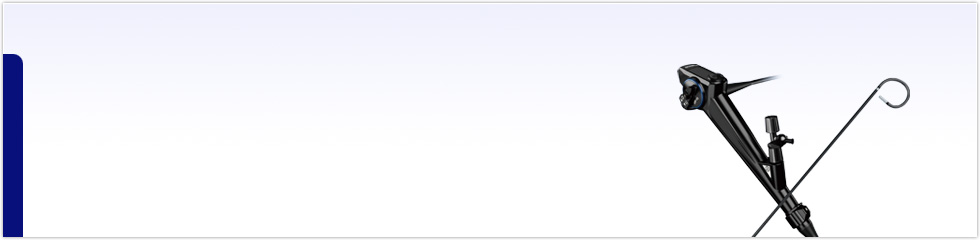

Flexible Video Ureteroscope

URF-V2/V2R

  • NBI
  • Rotation
URF-V2/V2R

Contents start

An extremely slim videoscope is a long-awaited desire of medical professionals, and with this advancement, high insertability and a clear image are attained by the new URF-V2.
Every feature contributes to its versatile performance.

  • Add to Watch List
  • Brochure

Slim Design

The URF-V2 features a micromini CCD which enables the outer diameter to be significantly smaller than previous-generation flexible video ureteroscope*1. Just 8.4 Fr at the insertion tube, this is the world’s smallest flexible video ureteroscope currently available*2.

Improved flow with 12 Fr Access Sheath

URF-V

URF-V2
Shaft 9.9 Fr 8.4 Fr
Working channel 3.6 Fr 3.6 Fr

High Image Quality

The new chip-on-tip micromini CCD provides a high-quality image that is noticeably clearer than a fiberscope*3. The high-quality and large-size image helps to support more detail and precise observation. As with all OLYMPUS videoscopes, integrated NBI (Narrow Band Imaging) enhances the vessels of a tumor without the need for drugs or dyes.

Stone Tumor

URF-P6

URF-V2

White light

NBI

Improved Handling

Stiff shaft
The URF-V2 shaft is stiffer than that of its predecessor*1. The stiff shaft is designed for smooth insertion of the scope into the ureter, providing easier access to the kidney. The torque stable shaft helps maximize control throughout the entire procedure.

Wide angulation range
The 275° up/down angulation is designed to facilitate access to stones in the upper, mid and lower calyces even when working with a laser fiber.

Insertion Tube Rotation
In order to minimize surgeon fatigue, the URF-V2 has an improved insertion tube rotation function than previous model*1. This allows the surgeon to comfortably hold the endoscope in a neutral position and rotate the insertion tube independently. Also it enables easy adjustment of the distal end without twisting the surgeon's wrist.

*1: Uretero-reno Videoscope OLYMPUS URF TYPE V
*2: As of April 2014
*3: Uretero-reno Fiberscope OLYMPUS URF-P6

Optical System Field of view 80°
Direction of view Forward viewing
Depth of field 1.5 - 50 mm
Insertion Tube Distal end outer diameter 8.5 Fr
Insertion tube outer diameter 8.4 Fr (2.8 mm)
Working length 670 mm
Instrument Channel Inner channel diameter 3.6 Fr (1.2 mm)
Bending Section Angulation range Up 275° / Down 275°
Total Length   980 mm
