Rhino-Laryngo Fiberscopes

ENF-P4

ENF-P4

Contents start

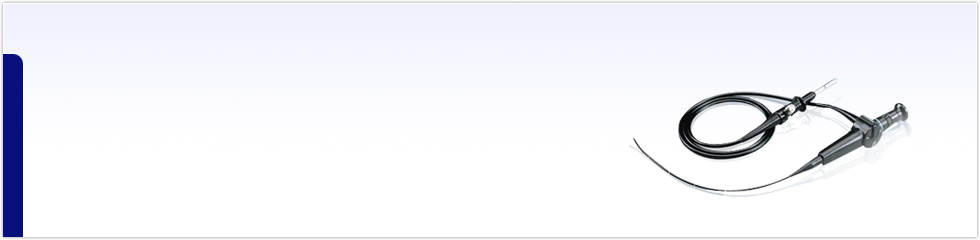

The ENF TYPE P4 rhino-laryngo fiberscope offers users high-grade fibre-optics that are always a step ahead. Larger, brighter, crisper images are guaranteed due to the incorporation of the very latest high-grade fibre-optic technology and new optical system. Together, these result in a 25% greater image size than previous scopes, and increased image detail, clarity and brightness. The result is a remarkable image with maintained resolution and the same 3.4 mm diameter of previous models.

The ENF TYPE P4 rhino-larygno fiberscope offers users high-grade fibre-optics that are always a step ahead. Larger, brighter, crisper images are guaranteed due to the incorporation of the very latest high-grade fibre-optic technology and new optical system. Together, these result in a 25% greater image size than previous scopes, and increased image detail, clarity and brightness. The result is a remarkable image with maintained resolution and the same 3.4 mm diameter of previous models.

  • Add to Watch List
  • Brochure

Bigger image size

Incorporating the latest high-grade fibre-optic technology so that images are 25% larger, but from the 3.4 mm diameter of previous models.

Detailed diagnosis

The increased number of image fibres in the scope significantly enhances the image detail but maintains the resolution of previous models.

Bright observation

The new optical system ensures images are far brighter than previous models; the retained slim diameter maintains comfortable, easy operation.

Wide field of view

With its wide 85° field of view and enhanced brightness, ENF-P4 gives users clear, comprehensive views of the nasal cavity and laryngo-pharynx areas.

Latest fibre-optic technology for enhanced images

Incorporating the latest high-grade fibre-optic technology so that images are clear, accurate and large, with a higher resolution and brightness than previous models, making observation capability remarkable.

Wide up/down angulation for easy maneuverability

The ENF TYPE P4 can be angled up or down by up to 130°, making it easier to insert, remove and manoeuvre as needed during rhino-laryngo procedures.

Wide field for comprehensive views

The wide 85° field of view enlarges the overview, thereby allowing comprehensive views of the nasal cavity and laryngo-pharynx areas.

Longer 300 mm scope

Lengthening the scope to 300 mm has made insertion and use easier for transnasal laryngoscopy- /vocal cord- and pharynx procedures.

Optical System Field of view 85°
Depth of field 5 - 50 mm
Insertion Tube Distal end outer diameter 3.4 mm
Flexible tube outer diameter 3.6 mm
Working length 300 mm
Bending Section Angulation range Up 130°, Down 130°
Total Length   530 mm
